SG-4
Stand-Alone "Smart" Autoguider
   SBIG is now accepting pre-orders for
Estimated release late May or early June 2009
Initial List Price *approx $A 1850
See details below

(*price may vary with $A to $US)

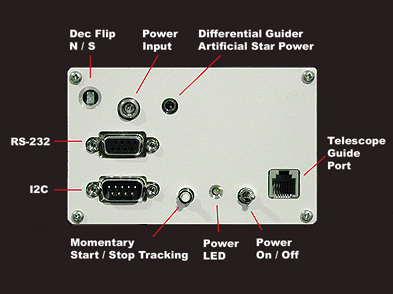

SBIG began with the ST-4 autoguider nearly 20 years ago.  This venerable stand-alone unit is still used by many for digital astrophotography.  We later made the STV video stand-alone autoguider, and now offer the SG-4.  After two decades of experience making self-guiding cameras and autoguiders, we have developed the SG-4 for those who just don't want to use a computer to guide or image with their digital camera or non-self-guiding CCD camera.  The SG-4 is made to piggy-back on your scope and perform its guiding functions without being connected to any external computing device.  Simply attach the tracking cable between the SG-4 and your telescope drive's autoguider input and plug in the 12V power and its ready to go.  An RS232 port will allow an initial setup for your particular scope and drive after which operation is completely independent.  An optional Bluetooth transmitter may be connected to the RS232 port for wireless setup and download of the image if desired.  Some highlights of the camera:

The KAI-340 CCD has exceptional read noise and dark current characteristics.  The mechanical shutter makes taking dark frames automatic, no need to cover the camera or the scope by hand to capture a dark frame.  Dark frames are desirable for autoguiding to remove any hot pixels that might otherwise be mistaken for stars by the guider.  A (user supplied) Bluetooth transmitter can be plugged into the RS232 port for wireless setup and image download.

The SG-4 will also support SBIG's differential guiding (patent pending) by providing power to illuminate an artificial star.

While there are cheaper stand alone guiders available the SG-4 feature set is far more powerful and comprehensive:

  1. A shutter for dark frames
  2. Much lower dark current
  3. Much lower read noise
  4. Greater sensitivity
  5. Significantly larger sensor
  6. CCD array (not cmos)
  7. Optional blue tooth wireless capability
  8. Image download capability via RS232
  9. Completely independent operation (no hand paddle or computer required)
  10. Superior guiding firmware through 20 years experience in making autoguiders

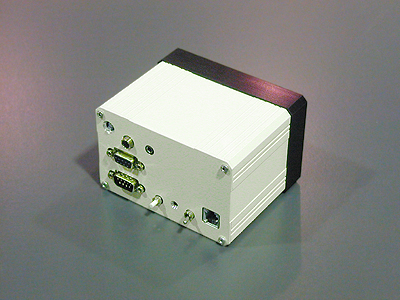

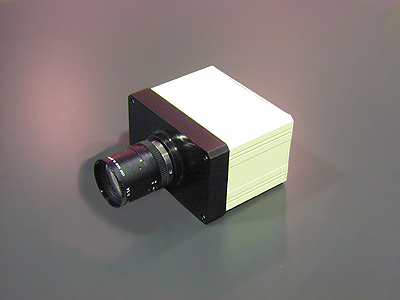

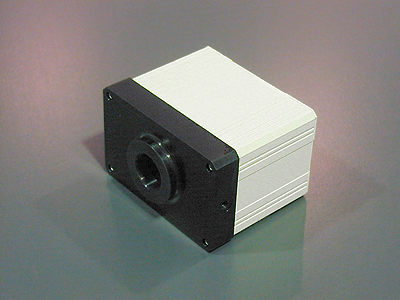

Prototype Pictures




We have received a great deal of interest in this product.  Initial production will be rather limited, so in order to fairly prioritize a waiting list we will accept pre-orders from individuals with a 50% deposit.  Individuals who have placed orders with a deposit will be given the first units according to the date the deposit is received.
