Gemini data

Full Color Graphic Touch Screen clearly displays all functions

Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear

Support for the original four-button controller

For Losmandy GM8, G-11 & Titan mounts

Custom mount support using the Programmable Gear Rate function

8°/sec Slew Rate (GM8)

0.5 arcsec positional accuracy

DC Servos for improved accuracy with higher torque than stepper motors

GPS-compatible with optional receiver

Stand-alone system. No PC required!

Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or serial port

Non-Volatile Memory and Real-Time Clock

English, French & German displays

Over 40,000 objects

Two USB ports; Virtual COM to PC, ASCOM or planetarium program

Port E - future high-res encoders

Port F - multi-function serial; A/D I/O

Firmware upgrade via internet

PEC correction

Auto-Guide port (TTL)

Dual 12~18V DC input/output (3.0A)

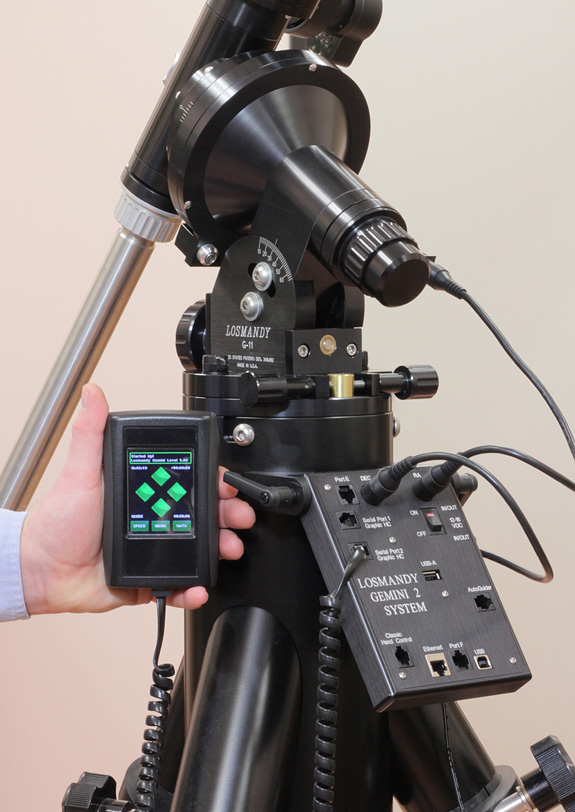

New! Gemini 2
